iCam365 5000mAh Door Eye Night Vision Doorbell Camera

Doorbell Camera iCam365 5000mAh Door Eye Night Vision 3MP 2.4G WiFi Smart Peephole Camera Video Intercom Digital View

Alarm: Yes

3256807774964887

Certification: CE,FCC,RoHS

Choice: yes

Connection Type: WireLess

Display: Color

Feature: Photograph,Video

Hign-concerned Chemical: None

Item Type: PeepHole

Itercom: Yes

Origin: Mainland China

Power: Dry battery

semi_Choice: yes



1: 3MP=2304×1296 Pixels

2: The doorbell must work with 2.4G WIFI of router, can't work with 5G WIFI, if your router has both 2.4G and 5G, please close the 5G firstly then connect it to the APP,
after success, you can open the 5G WiFi for normal use, thanks!!



3: The doorbell is suitable for: 40-120mm thickness of door, peephole is 16-50mm, and the cable installation length is 11cm.
Not suitable to: double doors, doors with small windows or steel mesh, soft-packed doors, doors without peepholes (need to drill a peephole by yourself)



RFQ:

Q1. What is the doorbell app?

A1: APP is iCam365, do not support other APP

Q2.What battery is used in the doorbell? How long is the standy time?

A2: Built-in lithium 5000mAh battery and easy charge by USB 5V 1A;
standy time 3 months (PIR alarm is not turned on),
After the PIR alarm is turned on, the battery can only last about 600 times at most, the usetime is about 20~30 days normally.

Q3. I bought TF card with doorbell, but I did not find the TF card?

A3: TF card is sticked on the side of doorbell box, please kindly check and find it.

Q4. How many video recordings 32GB TF card can have ?
A4: For 15 seconds video recording, it's about 14300 records, which can be used for 715 days according to 20 records per day
Automatic overwrite when TF card is full, or format the card in the APP

Q5.How to wifi connect ?

A5:1: Turn off the device first, then connect the camera to the display screen. After connecting, the device can be turned on to display images.

(note： charg device full power first；the installation direction of the camera cable should be correct；Do not fold or pull the camera cable，if the cable is damaged, it cannot transmit images, please change the cable)

2. Open APP - Register Login - Add Device - camera&lock-smart doorbell.

3. Turn on the device and press and hold the screen button for more than 5 seconds until you hear the voice prompt for network configuration from the device.

4. Select "next" on the app, enter your WiFi password, then generate a network QR code, scan code by the camera, scan the code for pairing, and receive a device voice prompt indicating successful network configuration.

(Note: the device connected WiFi is the same one as your phone wifi; the device does not support 5G WiFi, and the dual band integration function of the router needs to be turned off. Please select 2.4G WiFi.)

Attention: If the network configuration fails, please confirm whether the WiFi password is correct and whether the router has turned off the dual frequency integration function. Then follow the configuration steps to try again.

If multiple attempts are unsuccessful, please do not open dispute or give bad review first, please contact us on AliExpress chat for connection video and assistance, we will try to reply you soon in 24 hours, thanks!

Q6. What the view angle of digital viewer? Support Night Vision?

A6:- Support 120° wide view angle

- Support 3MP Clear night vision with distance 5-8 meters

Q7. How to record image and video?

A7:Support motion detection record, it have free image cloud storage 30 days, but video cloud storage requires a fee.

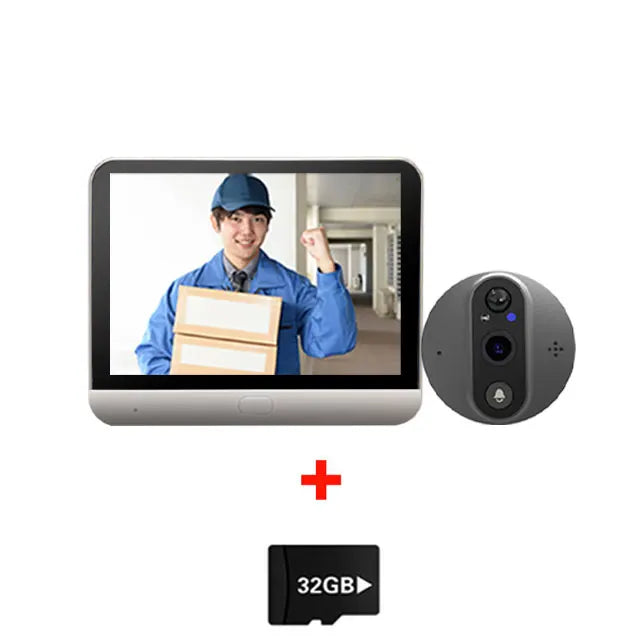

You can use TF cards store videos instead (please choose "add 32GB card" SKU to order)

Q8. How to adjust Doorbell Volume?

A8:You can adjust the press doorbell sound to 1% on APP, no more worry about disturb others!

Q9: Does this display will auto on when press the doorbell?

A9: Display will TURN ON AUTOMATICALLY when you press the door camera and monitor will AUTO-OFF after 10S.

Q10: Why no alarm?

Only support stay alarms. It means people staying at the door within 2 meters for above 3 seconds，the door camera will capture images or save videoes and push alarms; below 3 seconds or above 2 meters, it will not take picture or video and alarm.

And there are 3 sensitivity options on APP settings:

High sensitivity response time: 3-5 seconds,

Medium sensitivity response time: 5-8 seconds,

Low sensitivity response time: 8-15 seconds



LCD Display Size: 4.3 inch

- Image Sensor

Solution: OV9712 CMOS Sensor + Hi3518E SoC

Display Resolution: 3.0MP-2304*1296P

Focal Length: 1.7mm

Angle of View:120 degreewide angle

- Audio

Input/Output: Built-in microphone&speaker

Type: 2-way audio with noice cancellation

- Video

Video Compression: H.265

Stream: Double stream

Night Vision: 2pcs IR-LEDs

- Alarm

PIR Motion Detect: Yes

- Network

Protocol: P2P

Wireless Standard: 2.4Ghz WiFi IEEE 802.11b/g/n

- App

Support: Android,IOS

APP: iCam365

- Storage

Mobile Phone Memory: Yes

SD TF Card: Support Max. 128GB ( please use above C10 high speed in FAT32 format TF card for the doorbell )

Cloud Function: Yes

- Power

Power Supply: Built-in Lithium Battery and EasyCharged by USB

Charging Port: Micro USB

- Consumption

Working Mode: 380mA (IR on)

Standby Mode: 200uA

Physical:LCD

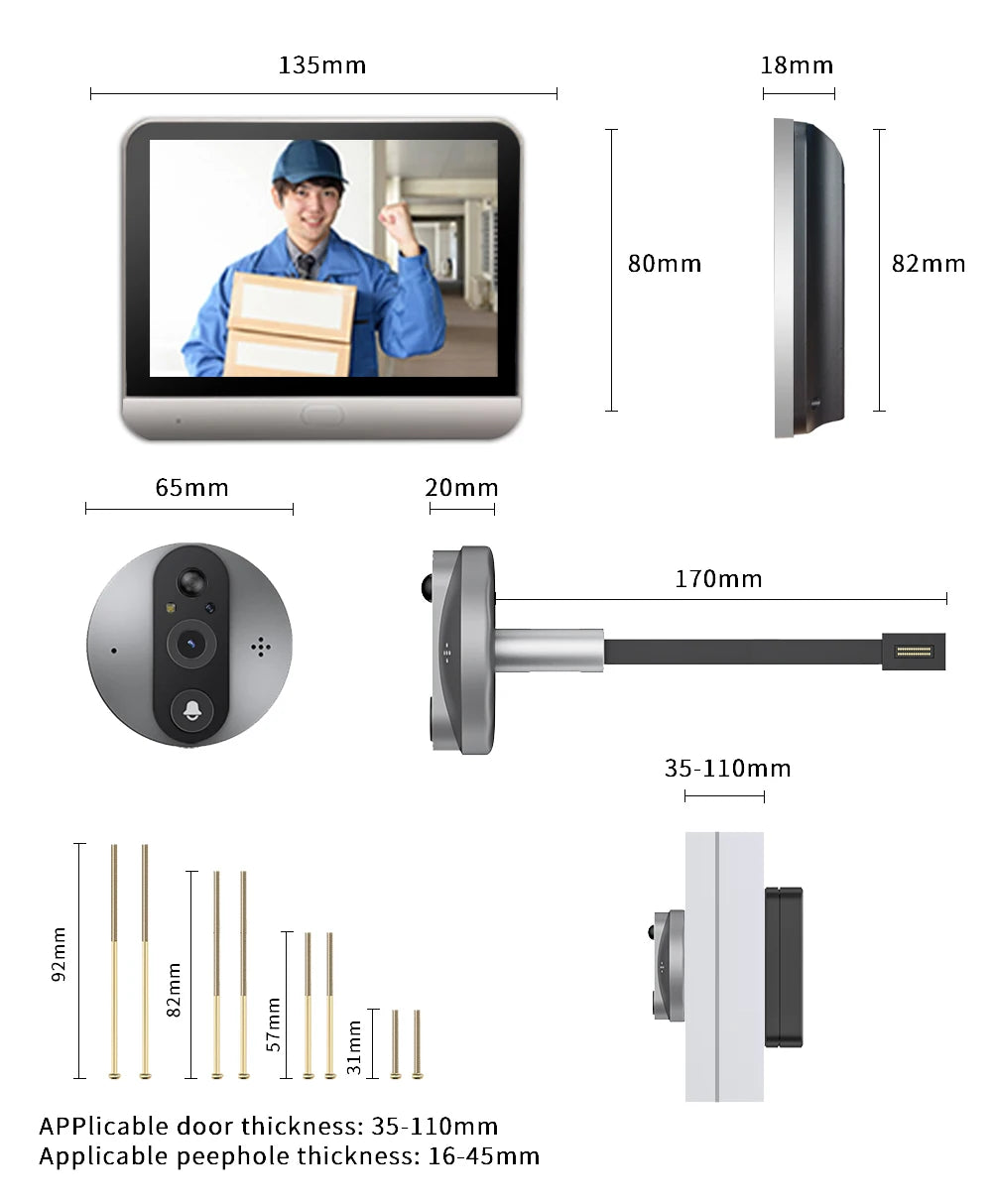

Dimension: 140*82*20 mm

Camera Machine: 64.5*64.5*16 mm (copper)

Weatherproof: Yes

User Accounts: Total 4 Users

Working Temperature: -20℃ to 55℃

Relative Humidity: 85% non-condensing



1x WiFi Peephole Viewer (indoor)

1x Doorbell (outdoor)

1x Micro USB Cable

1x Mounting Plate

1x Screw Kit

1x User Manual

Notice:TF card is option! (please useabove C10 high speed in FAT32 format TF card for the doorbell )
