Waterproof Wireless Doorbell QX-009 LED Light Home Calling Bell

$12.94 USD

Color: 1 receiver 1 button

1 receiver 1 button
1 receiver 2 buttons
2 receivers 1 button

Plug Type: Eu plug

Eu plug
Disponibilidad : En stock Hacer un pedido Agotado
Categorías: Timbre inteligente
Etiquetas: Smart Doorbell

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Descripción

Waterproof Wireless Doorbell QX-009 LED Light Home Calling Bell Remote Ring 60 Chimes 4 Volumes EU Plug AC 110-240V

Alarm: No



Battery: CR2032 Battery (installed)

3256807427318684

Certification: CE,RoHS

Chimes: 60 songs

Choice: yes

Connection Type: WireLess

Display: None

Feature: None

Hign-concerned Chemical: None

Item Type: Wireless Doorbell

Itercom: No

Model number: QX-009

Origin: Mainland China

Power: Electric Supply

Power supply: AC: 110-240V

Quality standard: CE/EMC/LVD/ISO9001

Smart home platform: None

Volume control: 4 levels 0dB to 85 dB

Warranty: 2 years.

Waterproof: IP44

Working Distance: 150 meters





NOTE: Battery is installed in the transmitter,  you do not need to install any battery, just plug and play.

Pay Attention:

1. Please check the power plug carefully to make sure it can be used in your country.

2. a CR2032 battery is installed in the transmitter, you do not need to install any battery.

3. Do not install the doorbell on an iron door, that will make the signal weaker.

Transmitters can be paired with one or more receivers, each transmitter can be set to a different ringtone.

Each Transmitter can be paired with more than 10 receivers, and each receiver can be paired with more than 10 transmitters.



-60 music ringtones, multiple chord music options

-4 levels of volume adjustment, can be muted

-Receiver power supply: AC 110-240V plug and play.

-Transmitter power supply:  1 piece CR2032 battery.

-Receiver size: 89mm*47mm*26mm

-Transmitter size:70mm*40mm*11mm.




Working Principle:

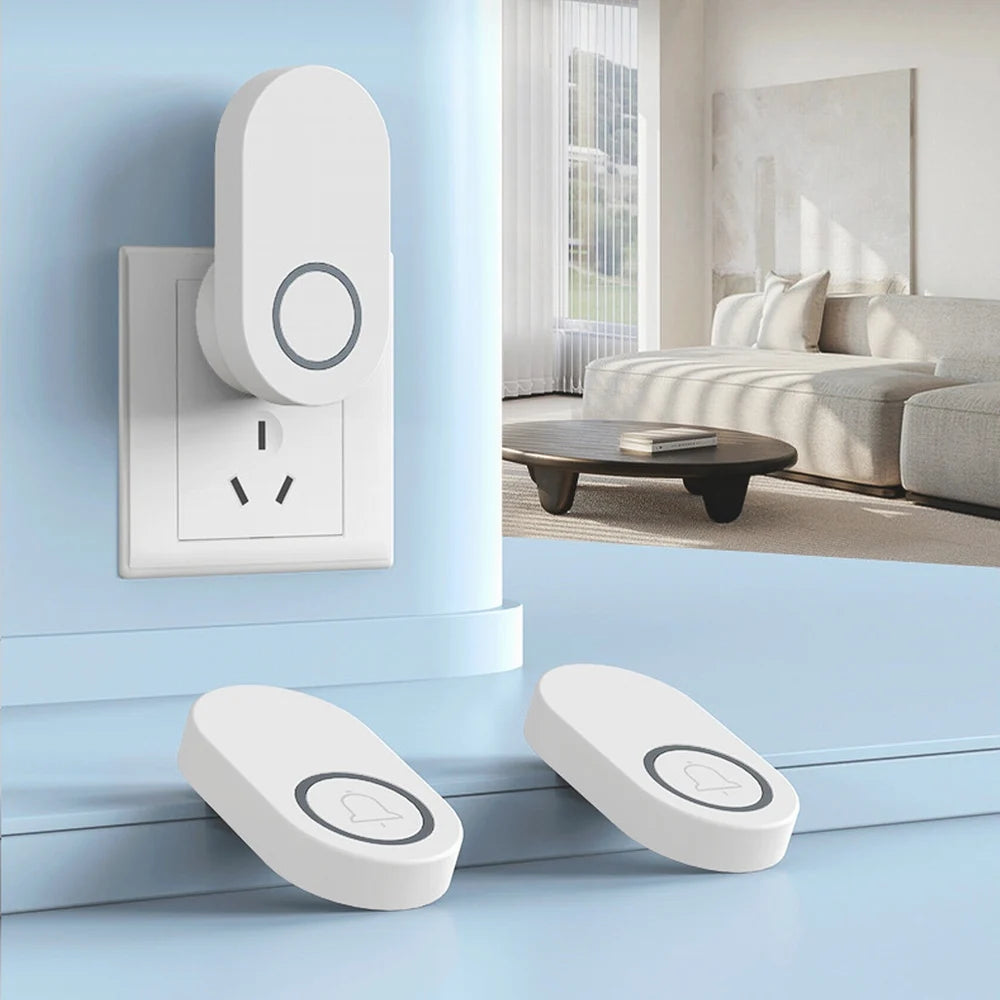

The transmitter is installed outside the door, and the receiver is installed on the power socket.

Press the transmitter to ring the bell, and the receiver will immediately ring a bell and flash the light as a reminder.

Not only a doorbell but also a pager

If the elderly, children, and pregnant women have needs, they will be informed at the touch of a button, so they can sleep peacefully at night.



Technical Parameters:

-Receiver operating voltage: AC110-240V 50HZ/60HZ, plug and play.

-Receiver power consumption: 0.25W

-Operating frequency; 433MHz

-Transmitter battery: CR2032 battery

-Transmitter Battery life: estimated 10 times a day, about 1 years

- Adjustable volume range; 0-85dB

- Wireless distance; about 150 meters in the open area, and about 30 meters in the building.

-60 music ringtones, multiple chord music options

-4 levels of volume adjustment, the lowest can be muted

-LED flashing reminder-multi-button distinguished ringtone

-No ringing in series, no ringing by mistake





-Precautions!!

1. Non-professionals should not open it without authorization and repair it by themselves to avoid damaging precision electronic components.

2. There is a high-voltage circuit inside, please do not open it for use.

3. The correct use of products can effectively extend the service life.

4. The actual use of the working distance is shortened depending on the interference of environmental factors.

5. Please replace the battery if the use distance is significantly shortened or the sound is false.

6. Please do not install it on metal objects (such as iron doors, stainless steel doors, etc.) for installation.

Packing List:

1 Transmitter.

1 Doorbell receiver.

1 Double-sized adhesive tape.

1 CR2032 battery.



How to setup the doorbell.

Please operate Within 60 seconds after you plug the receiver in the power socket

1.  Press and hold down the setup button on the receiver for about 4 seconds until the indicator light is on, then press the transmitter button immediately, when the indicator of the receiver flashes once to indicate the transmitter is paired.  Repeat this process can pair up to 10 transmitters.

Remind: When pairing 2 or more transmitters, you can set different ringtones. please see below steps.

2. Change the music for different transmitters.

Press the music key to choose your favorite song,hold down the setup button for about 4 seconds, the LED lights on, release the setup button and press the transmitter button to pair, now the transmitter will call the current ringtone.

How to reset and clean the code.

Within 60 seconds after you plug the receiver in the power socket, press and hold the setup button for more than 6 seconds until the blue indicator is on, then release the button, the indicator will flash 3 times, the receiver is reset and all transmitters will be disconnected.



How to install the battery.

Please open the button case to install a CR2032 battery as below photos.
